We have enough experience to manufacture various kind of disposable product like chopstick, toothpick, spoon, straw, tongue depressor, sticker, acupuncture, cap and etc over 40 years requested by all world customers and expanding to export to Japan, U.S.A, Malaysia, Philippine, Brazil, China, Taiwan and many countries.
*Specification 1. Spoon supplying : By ROBOT 2. Spoon size : Your cutlery size
3. Sealing : Heat sealing by 3-side sealing

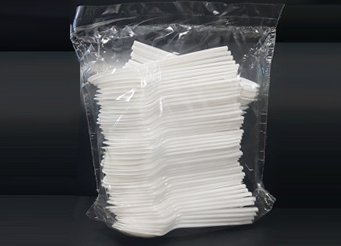

4. Packing : 50pcs piled-up * 2 layer (100pcs packing)
5. Productivity : 2(100pcs) packs / min
6. Electric : SERVO HG - KN73 : 1setSERVO HG - KN43 : 2sets (MITSUBISHI)
Small Motor : 90w 5sets (S9R60GBH : 2sets,
S9I90GBH-V12:3sets) Heater : 250w - 4ea
7. Component : Frame, ROBOT Supplying part,
Main Sealing part, Spoon loading part,
Horisontal sealing part, Cutting part,
Pulling roller part, Film Hanger,
Electric Control box

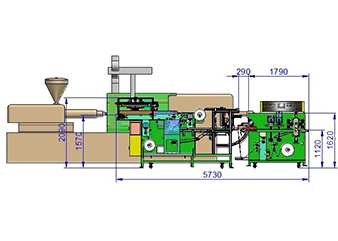

*Specification 1.Machine size : 5,730(L) x 1,430(W) x 2,090(H) (mm)
2.Cutlery size
(1)spoon : 157 x 36 x 16 (mm)
(2)Fork : 157 x 25 x 16 (mm)
3.Cycle time : 14~15sec
4.Productivity : 1~1.5pack/min
5.Mold : 32cavity(Pitch : 47.625mm)
6.Sucking point : Inside
7.Sealing : Heat seal 4-side grid pattern
Heat sealing 3-side grid pattern

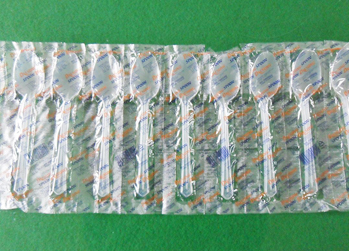

8.Pack
4-side individual packed 100pcs
1pack of 3-side pillow pack
9.Power
Servo motor 0.5hp 1set, 1hp 1set small motor 90w 1ea
Ssevo motor 0.5hp 1set, 90w x 2ea (220V,50HZ,3P)
10.Optional Device
(1)Eye-mark sensing device
(2)Cutlery head direction turning device for Feeding in One Row
(3)Packed cutlery 50pcs arranging device
(For arraning 50pcs x 2 layer in One Pack)

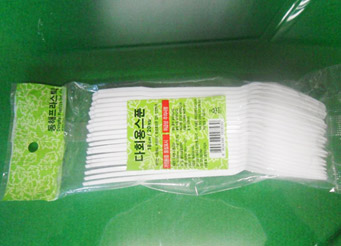

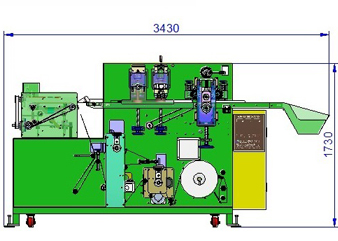

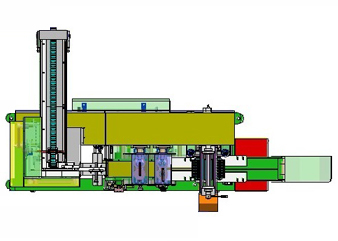

*Specification 1.Machine size : 3,430(L) x 1,940(W) x 1,730(H) (mm)
2. Fork size : 24 x 14 x 155
Knife size : 19 x 3 x 167
3.Supplying method : By Robot
4.Sealing method : 3 side heat sealing
5.Productivity : 110~130pcs/min
6.Weigth : 2500kgs
*Specification

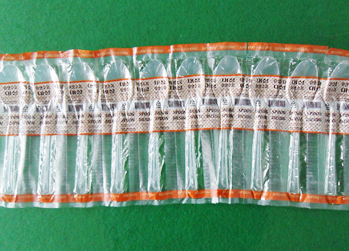

1. Spoon size : 38 x 178 x 18 (mm)
2. Product size : 51.5 x 210 (mm) (10pcs)
Unit packing : 10pcs x 10pcs (1pack)
3. Feeding method : pick an place robot (buyer)
spoon direction changing robot (Hwajin)
4. Sealing shape : 4-side heat seal
5. Cutting method : Saw knife
6. Power : main motor (1.5kw) ring blower (1.5kw) heater (4km)
7. Machine size : 3,467(L) x 2,109(L) x 1,935(H) (mm)
8. Weight : 2,000kgs

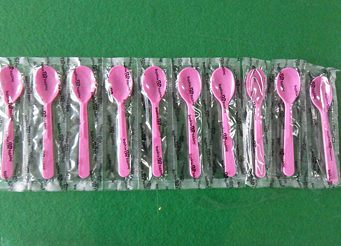

*Specification 1. Machine size : 3,534(L) x 1,585(W) x 1,636(H) (mm) 2. Spoon size : 27 x 122 x 7 mm (Baskin Robbins) 3. Product feeding : Robot 4. Sealing shape : 4-side heat seal 5. Productivity : 180 ~ 200pcs/min 6. Weight : 2,500kgs
*Specification 1. Machine size : 2,850(L) x 1,257(W) x 1,724(H) (mm) 2. Productivity : 200 ~ 250 pcs/min 3. Sealing shape : 4-side sealing 4. Sealing material : PE laminated Film 5. Sealing method : Heat sealing 6. Packing Method : Individual packing in 2 row 7. Product feeding : Robot conveyor 8. Weight : 1,400kgs
*Specification 1. Machine size : 3,534(L) x 1,585(W) x 1,636(H) (mm) 2. Spoon size : 35 x 107 x 17 (mm) 3. Product feeding : Robot 4. Sealing shape : 4-way by heat 5. Productivity : 180 ~ 200 pcs/min 6. Weight : 2,500kgs
*Specification 1. Machine size : 3,025(L) x 3,080(W) x 1,930(H) (mm)
2. Product size : spoon : 36 x 180 x 10 (mm)
3. Productivity : 15 ~ 20pack/min (10pcs)
4. Sealing shape : 3-way(Heat)
5. Packing method : 10pcs packing
6. Power : Servo motor : 900W x 1pc
,90W x 3pcs
packing machine : 0.5Hp x 1pc
Heater : 220V 250W x 10pcs
7. Weight : 3,800kgs

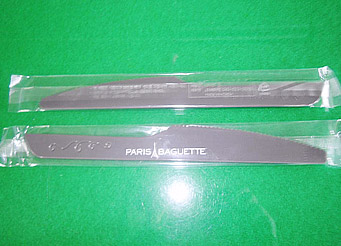

*Specification 1. Machine size : 2,000(L) x 2,500(W) x 1,600(H) (mm)
2. Product size : cake knife 30mm(W) x 210 ~ 300(L) (mm)
3. Productivity : 120pcs/min
4. Packing material : film
5. Product feeding : Robot
6. Sealing shape : 3-way
7. Sealing methtod : By heat
8. Weight : 2,000kgs
