We have enough experience to manufacture various kind of disposable product like chopstick, toothpick, spoon, straw, tongue depressor, sticker, acupuncture, cap and etc over 40 years requested by all world customers and expanding to export to Japan, U.S.A, Malaysia, Philippine, Brazil, China, Taiwan and many countries.

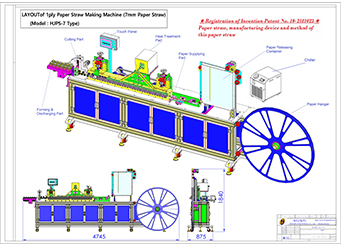

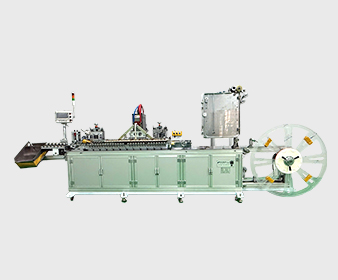

This machine supplies a single layer of coated paper roll of a certain width, rolls it to a circumference of the desired outer diameter (7 mm), bonds it with heat, and cuts it to a certain length to make a paper straw. It is differentiated from the existing 3-ply paper straws that supply 3 layers of paper and roll it into a spiral shape, and is a high-speed paper straw production machine that uses a small amount of paper to produce paper straws, so it is low cost, highly productive, hygienic, easy to operate and maintain, and is simple and compact, making it easy to install in a small space.
*Specification 1.Machine size : 4,745(L) x 875(W) x 1,840(H) (mm) 2.Straw : 7İŞ X 210 (mm) 3.Productivity : 250 ~ 300 pcs/min 4.Adhesive Method : Heat adhesive 5. Power
(1) Driving motor : 200 geared 1pc, 400w Servo 1pc,
2kw BLDC 1pc, 400w BLDC 1pc
(2) Heating system : 12kw
(3) Chiller : 0.75kw (500 x 377 x 660mm/ 50kgs)
(4) Air : 120L/min (0.7MPa)
(5) Operation : ON/OFF Switch 6. Weight : Approx 1,500kgs (Chiller weight included) 7. Machine Composition : Paper Hanger, Paper Releasing
Container, Heat Treatment part, Touch Panel,
Cutting part, Forming Part

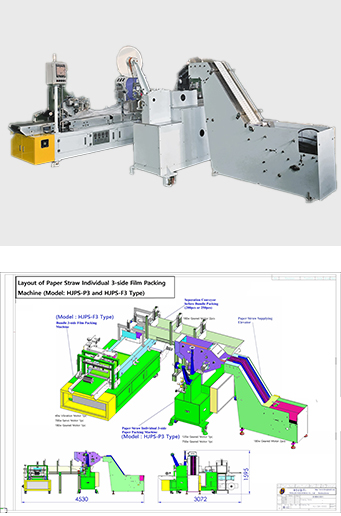

This is an automated machine that supplies the produced 7mm paper straws one by one by an elevator, individually wrap them with paper, then separates 200 to 250pcs of them on a separation conveyor and then wraps them with film.
*Specification 1.Machine size : 4,530 x 3,072 x 1,595 (mm) 2.Package Size :
(1) Individual Package : 250 x 15 (mm)
(2) Bundle Package : 350 x 320 (mm) 3.Packing Materials
(1) Individual Package : Food Paper
(2) Bundle Package : Film 4. Productivity
(1) Individual Package : 200 ~ 270 pcs/min
(2) Bundle Package : 1 ~ 1.5 pack/min 5.Sealing Shape : 3-side pillow shape 6.Sealing Method : Pressing 7. Power : (1) Driving Motor
a.HJPS-P3
180W geared 4pcs, 120w geared 1pc, 750w geared 1pc
b.HJPS-F3
180W geared 1pc, 40w vibration 1pc, 700w Servo 1pc
(2) Heater : 300w 2pcs, 400w 2pcs
(3) Air : 480L/min(0.8Mpa)
(4) Operation : 7,10 inch Touch Panel 8.Weight : Approx 1,350kgs 9.This automated production machine consists of the following four stages
(1) Paper Straw Supplying Elevator : 1,530 x 570 x 1,450(mm)
(2) Paper Straw Individual 3-side Paper Packing
Machine(Model : HJPS-P3 Type)
1,720 x 1,055 x 1,600(mm)
(3) Separation Conveyor(before Bundle packing)
1,950 x 500 x 1,290 (mm)
(4) Bundle 3-side Film packing Machine(Model: HJPS-F3 Type)
3,080 x 1,100 x 1,300(mm)
