This machine is used for making wood matches fully automatically and designed for easy operation and less maintenance. This is excellent in economy and compact construction and exporting to India, Bangladesh, Pakistan, Africa and Russia

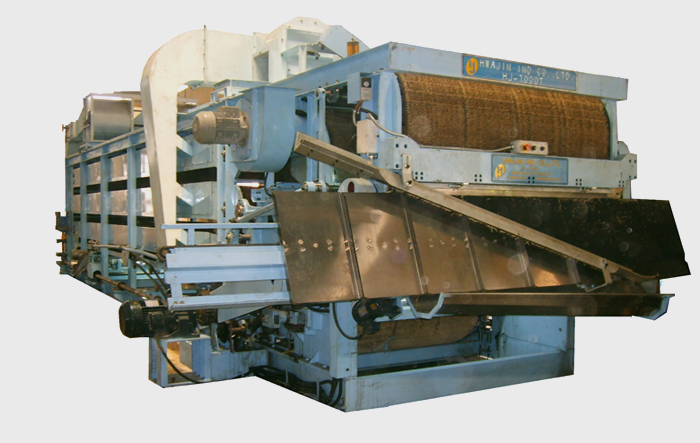

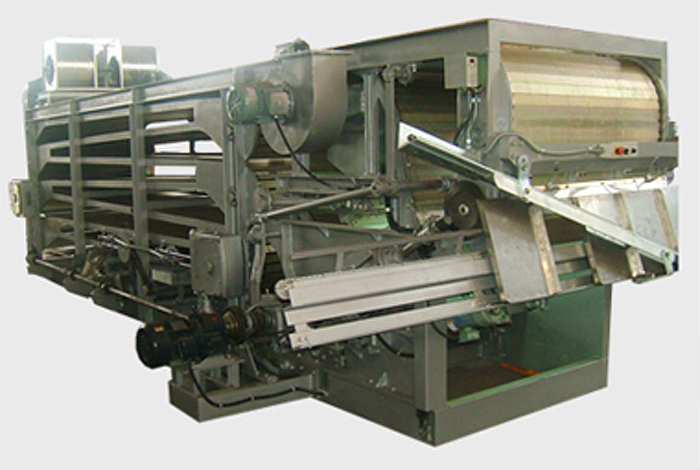

The purpose of the Match Making Machine(HJ-1000T) is to transform splints into matches. This is an important process for making good quality mathches.
*Specification 1. Machine size : 12,000(L) x 5,500(W) x 3,200(H) (mm) 2. Speed of Main shaft : 100 ~ 120 RPM/min 3. Power Requirement
(1) Main Machine
a. Main Drive(15:1) 5.5kw
b. Dust removing fan 2.2kw
c. Paraffin Smoke Fan(Ventilation Fan)3.75kw
d. Regular Box Main Motor 2.2kw
e. Drying Fan 3.75kw
f. Tray Carrying 0.4kw
g. Chemical Plat(Conveyor belt) 0.75kw
h. Screw Pump for Chemical Transporting
[Compressor : 5HP (Installation by buyer)]
i. Paraffin Pump 0.4kw
j. Splint charging vibrating motor 0.75kw
(2) Heater
a. Paraffin Table(upper) Heater 3kw
b. Paraffin Tank (below) Heater 5kw x 2pcs
c. Pre-heater for splint 2.5kw x 6pcs
d. Chemical plate heater 1kw x 3pcs
e. Steam Boiler has to be arranged by buyer.
(3) Splint transporting (Bunker part)
a. Vibration Motor 0.37kw
b. Match Transporting Fan 1.5kw
(4) Cup Selector(option)
a. 24 Cups Main Power 1.5kw
b. Match Transporting Fan 1.5kw
c. Short-Splint Selecting Motor 0.75kw 4. Capacity per Hour : 2,000,000 ~ 2,600,000 matches/hour 5. Bar :
(1) Size of Bar : 1,820 x 56 x 8T (2) Number of Bars : 1,370ea
(3) The number of Hole : 1 stroke 360ea x 4 time = 1,440 holes
*Specification 1. Size of Machine : 8,400(L) x 4,000(W) x 2,980(H) (mm) 2. Speed of Main shaft : 100 ~ 120 RPM/min 3. Power Requirement (1) Main Machine
a. Main Drive 5.5kw
b. Regular Box Dust Fan 2.2kw
c. Paraffin Smoke Fan 0.4kw
d. Regular Box Main Motor 2.2kw
e. Drying Fan 3.75kw f. Tray Carrying 0.4kw
g. Chemical Plate(Conveyor belt) 0.37kw
h. Air diaphragm Pump for Chemical Transporting
Comppressor : 5HP (Installation in local by buyer)
i. Paraffin Pump 0.4kw
(2) Heater a. Paraffin Table (upper) Heater 3kw
b. Paraffin Tank (below) Heater 5kw
C. Match Head Drying Heater 15kw (3) Splint transporting (Bunker part)
a. Vibration Motor 0.4kw
b. Match Transporting Fan 1.5kw
(4) Selecting Machine(option) a. 24 Cups Main Power 1.5kw
b. Match Transporting Fan 1.5kw
c. Short-Splint Selecting Motor 0.75kw
4. Capacity per Hour : 1,620,000 ~ 1,944,000 pcs/hour
(1) Size of Bar : 1,397 x 56 x 8T
(2) Number of Bars : 970ea + 15ea (Spare)
(3) The number of Hole : 270ea x 4

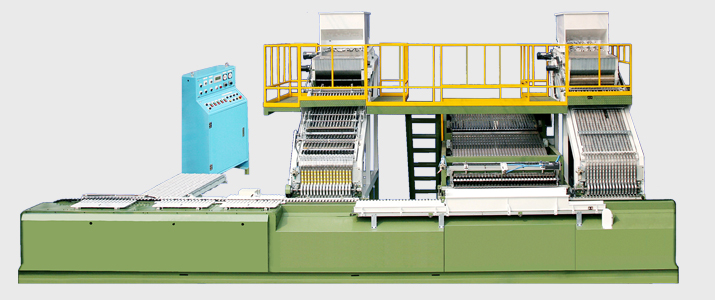

*Specification �� Total reguired electricity consumption (1+2+3) :12kw 1. Auto Match Filling & Box Combine Machine (8.3kw)
A. Machin size : 9,310(W) x 5,168(H) x 3,090(L) (mm)

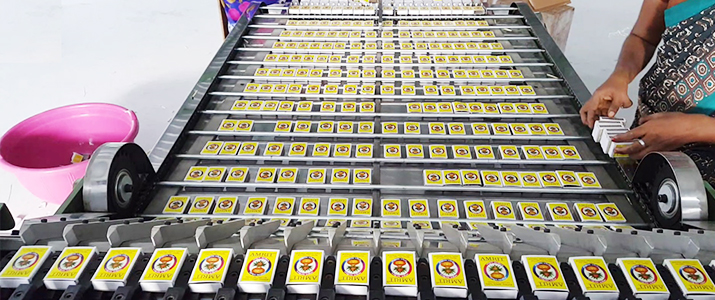

B. Productivity : 23~28RPM x 17 boxes = 391 ~ 476 Match Boxes/min
(Productivity : 23~28RPM x 15 boxes = 345 ~ 420 Match Boxes/min)
C. Machine part
1) Inner box Feeding
- Size : 3,200(L) x 1,500(W) x 3,850(H) (mm)
- Motor : 0.4kw x 1pc, 0.2kw x 2pcs - Weight : 800kgs
2) Match Supplying & Head Leveling
- Size : 6,000(L) x 2,200(W) x 2,400(H) (mm)
- Motor : 0.75kw x 1pc, 1.5kw x 1pc, 0.2kw x 2pcs, Vibration motor 0.2kw x 1pc
- Weight : 2,200kgs
3) Outer box feeding
- Size : 3,200(L) x 1,500(W) x 3,850(H) (mm)
- Motor : 0.4kw x 1pc, 0.2kw x 2pcs - Weight : 800kgs
4) Discharging part
- Size : 2,400(L) x 1,100(W) x 1,100(H) (mm) - Weight : 600kgs
5) Filling part
- Size : 8,800(L) x 1,100(W) x 1,100(H) (mm)
- Motor : 3.75kw x 1pc, 0.1kw x 1pc - Weight : 2,000kgs 2. High Speed Inner Box Making Machine(HJ-IB) (2.2KW)
- Size : 3,200(L) x 1,600(W) x 950(H) (mm)
- Motor : 2.2kw - Weight : 2,500kgs 3. High Speed Outer Box Making Machine(HJ-OB) (1.5KW)
- Size : 1,300(L) x 640(W) x 1,480(H) (mm)
- Motor : 1.5kw - Weight : 450kgs

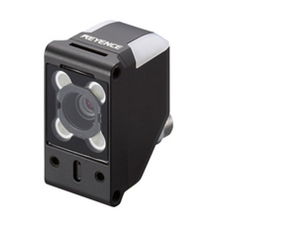

Keyence Vision Camera
Install 6 PCs of KEYENCE Vision camera for displaying 17 outer boxes
(One row) in one front design on discharging table !!
- No need to spill out match sticks when opening
- One CAMERA detects 3 pcs of outer boxes in one shot
- Memory 29 kinds of outer box design
- Easy setting
- Semi-permanent & Troubleproof (except physical impact or high heat)

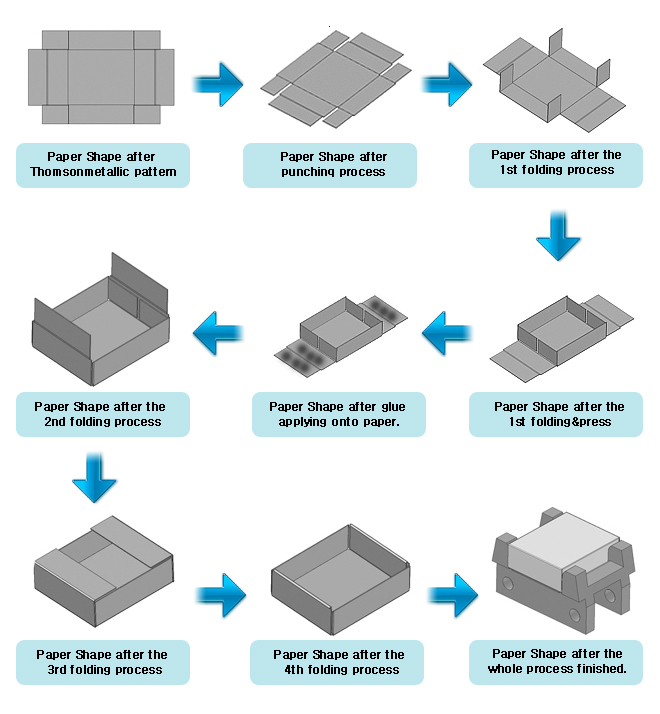

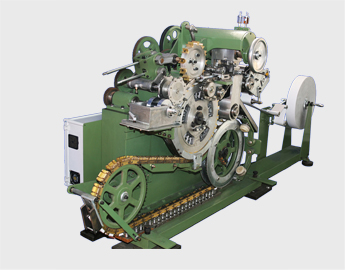

This is a high speed machine producing inner boxes of card board from a reel. The reel stand locates outside the machine and designed for an easy attendance without manual lifting of the reel. The cardboard is feed between creasing rollers and this rollers feed the cardboard through tools which punch and cut off. Then it passes glue rollers which apply glue on the outer and inner flaps. During this travel, the folding is performed. The final folding of the ends of the box is made when the blank is pushed out from the forming wheel into a cup chain. The finished box is pushed off from the cups into an air blowing pipe line for transporting to the bunker of inner box supplying in match filling and box combining machine.
*Specification 1. Size : 3,179(L) x 934(W) x 1,511(H) (mm) 2. Motor : 3HP 3. Adhesive : By glue 4. Forming Method : By punch with tomson 5. Drying : Press 6. Productivity : 800 ~ 1,000 pcs/min 7. Weight : 1,200 kgs

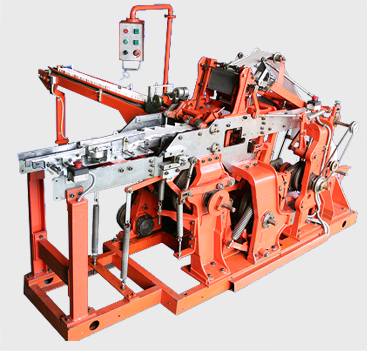

This is a high speed match outer box making machine for producing outer boxes of cardboard from skillets. The process of making outer box is divided, skillet feeding, gluing, folding, pressing, forming and drying stages. Skillet feeder pick each one skillet from skillet magazine and pass between the forming bar with gluing. After gluing, skillets is folded and pressed so that out box can have right angled sleeve type.
*Specification 1. Machine Size : 1,923(L) x 667(W) x 1,407(H) (mm) 2. Productivity : 48,000 boxes/hour 3. Adhesive : By glue with pressing 4. Motor : 2HP 5. Workers : 2 workers 6. Weight : 450kgs

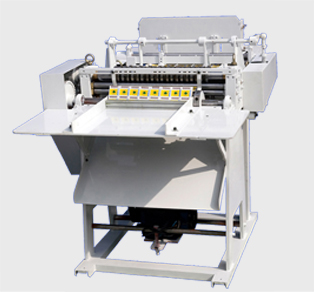

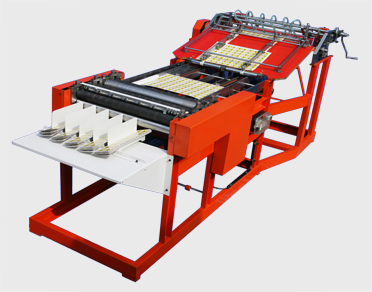

The sheet are manually loaded in the magazine and discharged each one at a time by pusher with vacuum bottom. It can adjust size easily as per requirement. Upper and lower creasing & slitting rollers are provided with a number of creasing &slitting knives with a pitch corresponding to the outer box length.
*Specification 1. Machine Size : 3,600(L) x 1,500(W) x 1,700(H) (mm) 2. Productivity : 16 sheets/min
(1,000 x n sheet/hour) 3.Cardboard size : Max 725 x 555 mm Min 725 x 370 mm
4. Motor : 2.2kw 5. Workers : 2persons 6. weight : 650kgs
This machine is to slit cut sheet produced from sheet cutting & creasing machine into outer box skillets. This machine can be used as long sheet length as possible to achieve high production. The slitted skillets are transferred by a pair of rollers which brings the skillets to an upright position and pushes the skillets into tray.
*Specificatiton 1. Machine Size : 1,700(L) x 1,000(W) x 1,200(H) (mm) 2. Productivity : 90 cut sheet x n/min 3. Cut sheet size : L : 370 x 555 mm W : 100 x 120 mm 4. Motor : 1.5kw 5. Workers : 1 person 6. Weight : 350kgs

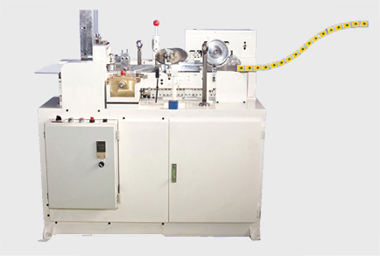

This machine produces packets with a capacity of 60-90packets/min. The machine works with paper from a reel. The glue applying unit consists of a sliding pot, from which the glue is carried by a number of rotating cylinder and rolled on the paper.
*Specification 1. Machine Size : 2,700(L) x 2,900(W) x 1,500(H) (mm) 2. Package Dimension : Min 56 x 45 x 38 (mm)
Max 104 x 155 x 60 (mm) 3. Productivity : 5,000 Packages/hr 4. Motor : 1.5kw 5. Workers : 2 persons 6. Weight : 1,700kgs
