* Material : Aluminium, Copper, Nonferrous metals, FC, SS,SC, steel, stainless and etc * Special Feature - Very convenient and easy maintenance
- Compact size and eco-friendly design
- Effective pressing by high-efficient press pumping
- Minimize the chip keeping warehouse, possible to press by Max 1/50 size
- Recoverable over 95% oil
- Pleasant working environment
- High profit and low lost (Pressed chip is dealing at high price.)
*Specification 1. Material : AL, SS, FC, Copper, BC, SUS 2. Chip condition : Chip or Curl (below 15mm) 3. Pressing Capacity : 1,600kN 4. Pressed Briquet Diameter : Ø100(mm) 5. Surface pressure : 20 ~ 21MPa 6. Hopper capacity : 100L 7. Productivity per material :
- Cast Iron Chips
Density : 4,000 ~ 5,000 kg/m3
Productivity per hour : 400 ~ 450 kg/hr
- Brass Chips
Density : 5,000 ~ 6,000 kg/m3
Productivity per hour : 450 ~ 500 kg/hr
- Aluminium Chips Density : 1,500 ~ 1,900 kg/m3
Productivity per hour : 180 ~ 200 kg/hr 8. Briquet producing Capacity per minutes : 3pcs 9. Press Motor : 40kw x 4P 10. Screw Hydraulic Motor : 6HP(24kg-m) 11. Cylinder(63 * 450) : 6Tons 12. Power : 220/380V 13. Total power required : 35kw
14. Machine size : 1,112 x 2,563 x 1,933 x 1,035 (mm) 15. Weight (Included Oil) : 2,500kgs

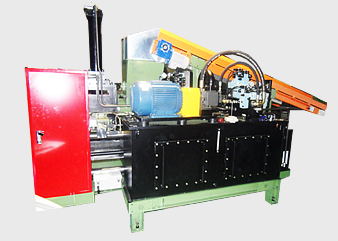

This machine compacts brass chip generated from processing machines directly collecting by conveyor.
